Thermoluminescent products



  • Thermoluminescent detectors are used to measure radiotherapy doses, monitor staff, etc..
  • Depending on the level required, a variety of detectors is available for different materials and shapes.



Description

  • A wide range of dosimeters of different sizes and shapes enables the best choice to be made depending on the measurement to be performed.

  • Natural LiF or enriched with isotope 6 or 7





  Examples of TLD



GR100M Lif :Mg,Ti square chip    3.2 x 3.2 x 0.9 mm 50 µGy à 500 Gy
GR100 Lif :Mg,Ti square chip 3.2 x 3.2 x 0.9 mm 50 µGy à 8 Gy
GR100A Lif :Mg,Ti cylindrical chip Ø 4,5 x 0.8 mm 50 µGy à 8 Gy
GR100R4 Lif :Mg,Ti square µ rod section 1 x 1 x 4 mm 100 µGy à 8 Gy

GR106 6Lif :Mg,Ti square chip    3.2 x 3.2 x 0.9 mm 50 µGy à 10 Gy
GR106A 6Lif :Mg,Ti cylindrical chip Ø 4,5 x 0.8 mm 50 µGy à 10 Gy
GR107 7Lif :Mg,Ti square chip     3.2 x 3.2 x 0.9 mm 100 µGy à 10 Gy
GR107A 7Lif :Mg,Ti cylindrical chip Ø 4,5 x 0.8 mm 100 µGy à 10 Gy
GR200 Lif :Mg,Cu,P square chip   3.2 x 3.2 x 0.9 mm 0,5 µGy à 12 Gy
GR200A Lif :Mg,Cu,P cylindrical chip Ø 4,5 x 0.8 mm 0,5 µGy à 12 Gy
GR200R1 Lif :Mg,Cu,P square µ rod section   1 x 1 x 1 mm 2 µGy à 12 Gy
GR200R4 Lif :Mg,Cu,P square µ rod section    1 x 1 x 4 mm 0,5 µGy à 12 Gy
GR200F Lif :Mg,Cu,P film Ø 4,5 mm 0,5 µGy à 12 Gy
GR206A 6Lif :Mg,Cu,P cylindrical chip Ø 4,5 x 0.8 mm 0,5 µGy à 12 Gy
GR207A 7Lif :Mg,Cu,P cylindrical chip Ø 4,5 x 0.8 mm 0,5 µGy à 12 Gy



GR100P Lif :Mg,Ti powder 80~200 µm 50 µGy à 10 Gy
GR106P 6Lif :Mg,Ti powder 80~200 µm 50 µGy à 10 Gy
GR107P 7Lif :Mg,Ti powder 80~200 µm 100 µGy à 10 Gy
GR200P Lif :Mg,Cu,P powder 80~200 µm 0,5 µGy à 12 Gy
GR206P 6Lif :Mg,Cu,P powder 80~200 µm 0,5 µGy à 12 Gy
GR207P 7Lif :Mg,Cu,P powder 80~200 µm 0,5 µGy à 12 Gy

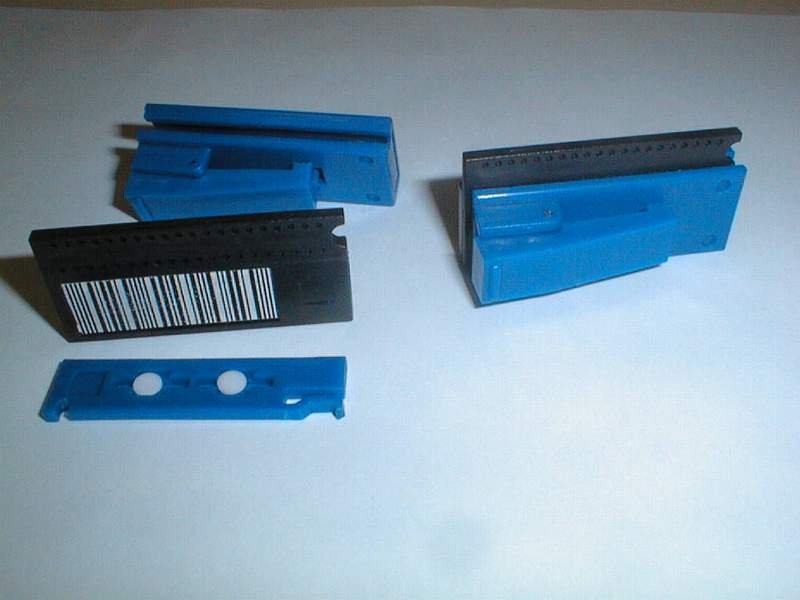

Chest badges



  • Chest badges for staff dosimetry.

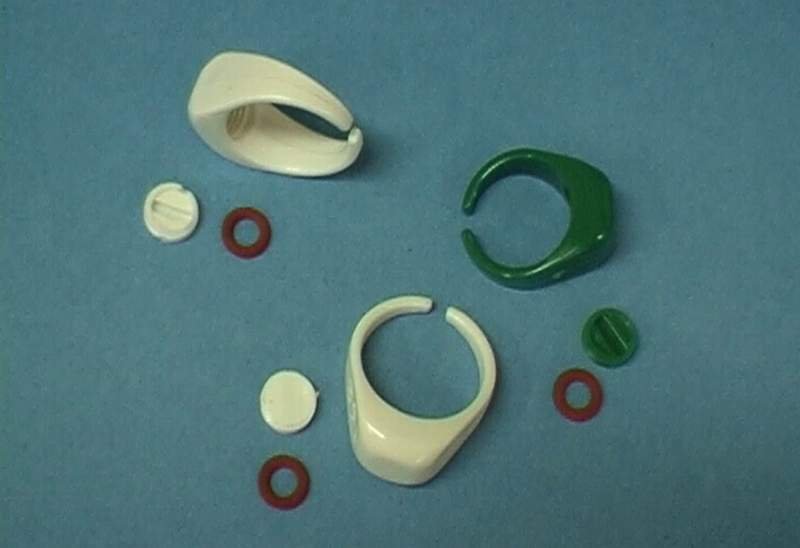

Rings for extremity dosimetry





Description

  • Receptacle for 1 solid dosimeter with a dimension of less than 5mm

  • Waterproof by O ring

  • Sterilizable

  • 2 sizes   17 and  20mm

  • Two colours available (green and white)

  • Individually numbered

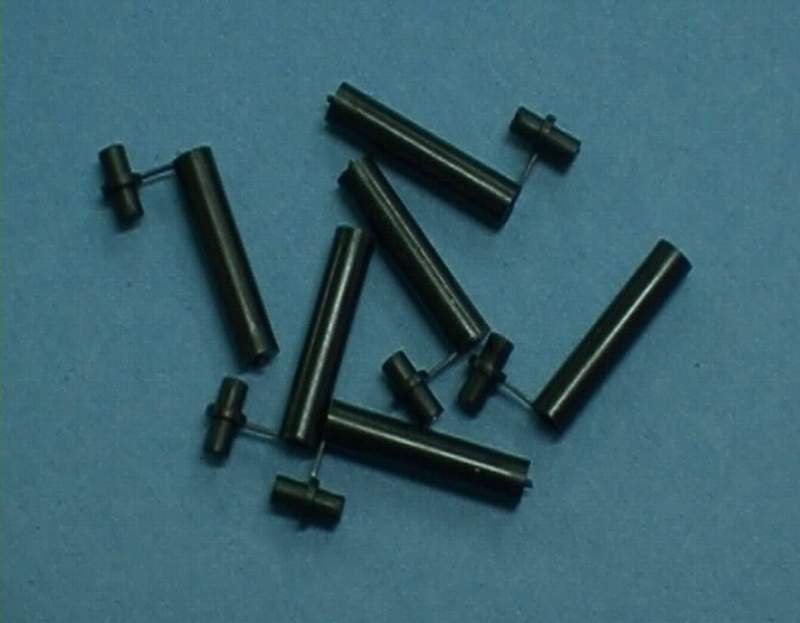

Tubes for irradiating powder





Description

  • Waterproof tubes

  • Ø 5mm   L29mm

  • Contains sufficient powder to fill up 3 to 5 cupels
